Materials you can machine
Aluminum, brass, copper, engineering plastics and composites.

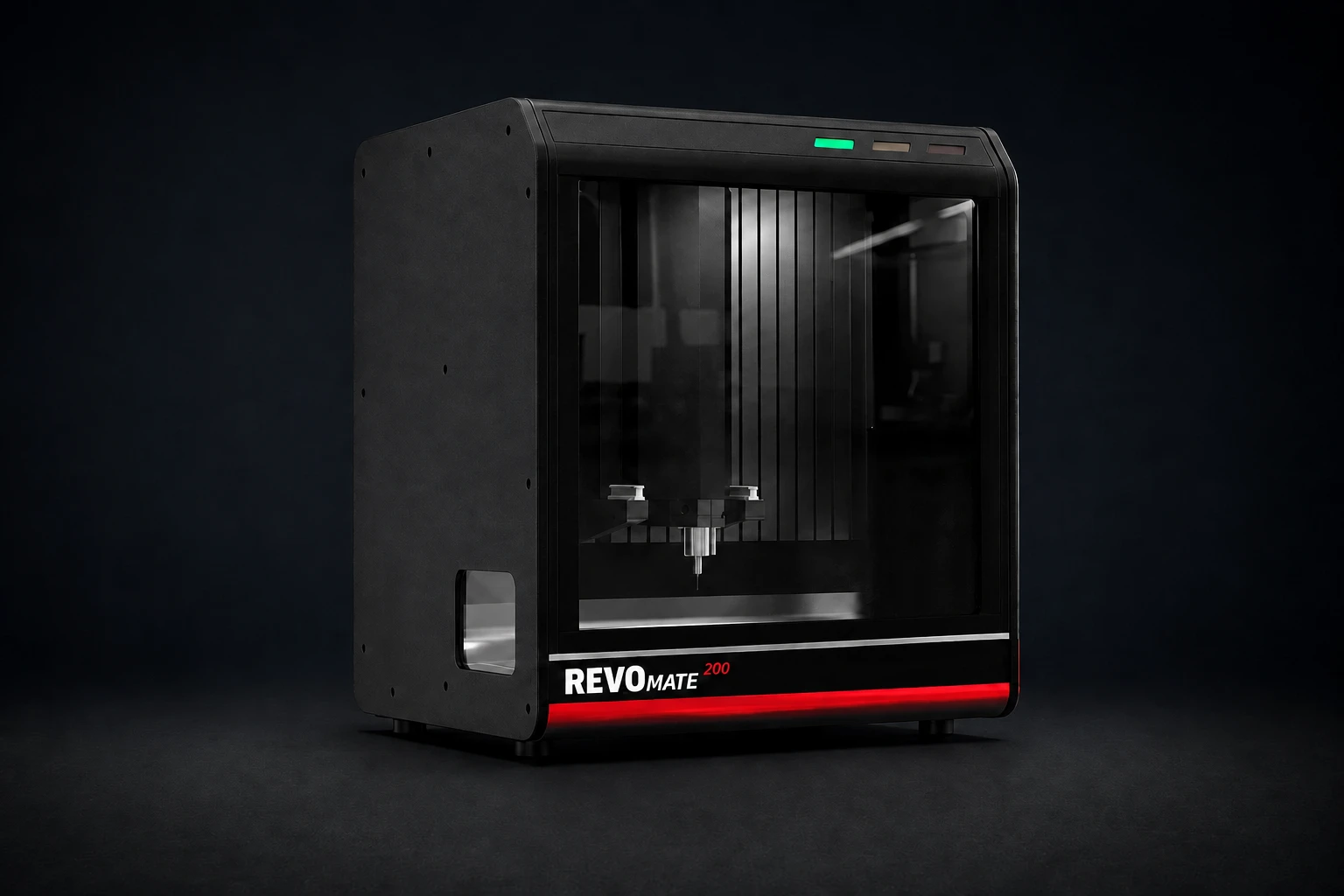

REVO MATE 200 / COMPACT CNC MILLMake room
Make room
for your ideas.
Turn the idea in your drawing into a part in your hand. With MATE 200, precision machining becomes part of your workspace.
Discover MATE 200 ↓PRECISION IN EVERY DIMENSIONSpecifications ↗
01 / MATE 200
From drawing to part.
From drawing to part.
In your own workspace.
An aluminium cast body, servo axes and single-phase 230 V power. From prototypes to test specimens, bring machining closer to the idea.
Will it fit my part? ↗- AXIS TRAVEL / MM
- 400 × 200 × 170
- STANDARD SPINDLE
- 40,000 rpm
- EXTERNAL SIZE / MM
- 720 × 850 × 850
02 / SIDE-TO-SIDE PROFILE ACCESSLonger stock.
Longer stock.
Same footprint.
Openings on both sides allow long profiles to pass through the enclosure. Position the section to be machined within the work envelope.
03 / SPINDLE AND AXESSmall tool.
Small tool.
Big difference.
Fine details with small tools and a 40,000 rpm spindle. For aluminium, brass, copper and engineering plastics.
40.000RPM / 1,5 kW / ER16
0,002 mm
REPEATABILITYBack to the same point. With directly driven servo axes.

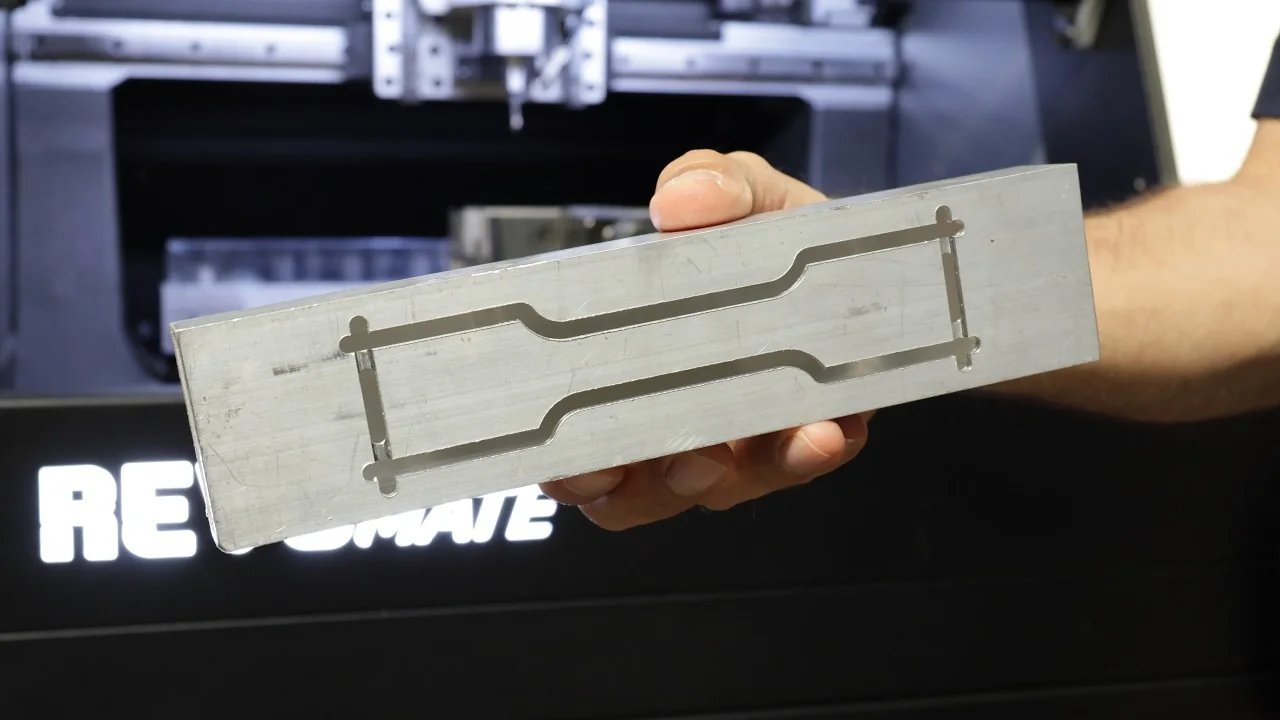

FROM THE WORKSHOP / ALUMINUMAluminium
Aluminium
tensile test specimen.
An aluminium tensile test specimen. In-house specimen machining with REVO MATE.
40,000 RPM1.5 KWMACHINING RESULT
Is MATE 200
the right model?
Material, part, task and setting. Four answers bring your choice into focus.
400 × 200 × 170
If the machining zone fits this envelope, a long profile can pass through the side openings. Table load: 30 kg.
Fast iteration
Prototypes, test specimens, fixtures, jigs and small-batch production.
230 V single phase
An office, laboratory, R&D space, workshop or beside the production line.
BEST SUITED TO
MATE 200 for prototypes, test specimens and small batches.
CAST ALUMINUM bodySERVO axes15 INCH integrated control2 YEARS warranty
MATE 200 / ENGINEERINGWork envelope and
Work envelope and
machine dimensions.
Start with the space your part needs. Then see how the machine fits your workshop. Explore both views.
SPACE FOR YOUR PART
400 × 200 × 170MM / X · Y · Z
The travel available to the tool. Consider table size and load capacity together with your fixture.
- Table size
- 600 × 200 mm
- Maximum table load
- 30 kg
ITS PLACE IN YOUR WORKSHOP
720 × 850MM / WIDTH · DEPTH
This is the machine’s exterior boundary. Allow separately for opening panels, operator access and servicing.
- Height
- 850 mm
- Machine weight
- 120 kg
STANDARD SPINDLE40,000RPM
ER16 · Manual tool change
Spindle and axis specifications.
- Spindle power
- 1,5 kW
- Maximum torque
- 0,35 Nm
0.002 mm / REPEATABILITY
Direct-drive servo axes. Cast-aluminium structure.
All technical specificationsDATA SHEET +
01 / MOTION & TABLE
- Travel X / Y / Z
- 400 × 200 × 170 mm
- Table size / maximum load
- 600 × 200 mm / 30 kg
- Spindle-to-table distance
- 40–210 mm
- Positioning
- 0.02 mm / 300 mm
- Repeatability
- 0.002 mm
- Feed rate X / Y / Z
- 6 / 6 / 2 m/min
02 / SPINDLE & CONTROL
- Spindle
- 40,000 rpm / 1.5 kW / 0.35 Nm
- Tool holder
- ER16 · manual
- Maximum tool shank / length
- 10 / 75 mm
- Axis motors
- Servo motor
- Controller
- Masso Touch · 15 inch
03 / INSTALLATION & STRUCTURE
- Supply voltage / full load
- 230 V AC / 2.4 kW
- Body
- Cast aluminum
- External dimensions W / D / H
- 720 × 850 × 850 mm
- Weight / warranty
- 120 kg / 2 years
FOR YOUR WORK
Available accessories
- Dual spindle option
- Ø100 mm 4th axis
- Vacuum table
- 3D workpiece probe
- 100 mm vise
Let’s discuss
your part.
Tell us about your material, part and goal. Let’s assess how MATE 200 fits your work.
Discuss your project ↗
