Materials you can machine
Aluminum, brass, copper, engineering plastics and composites.

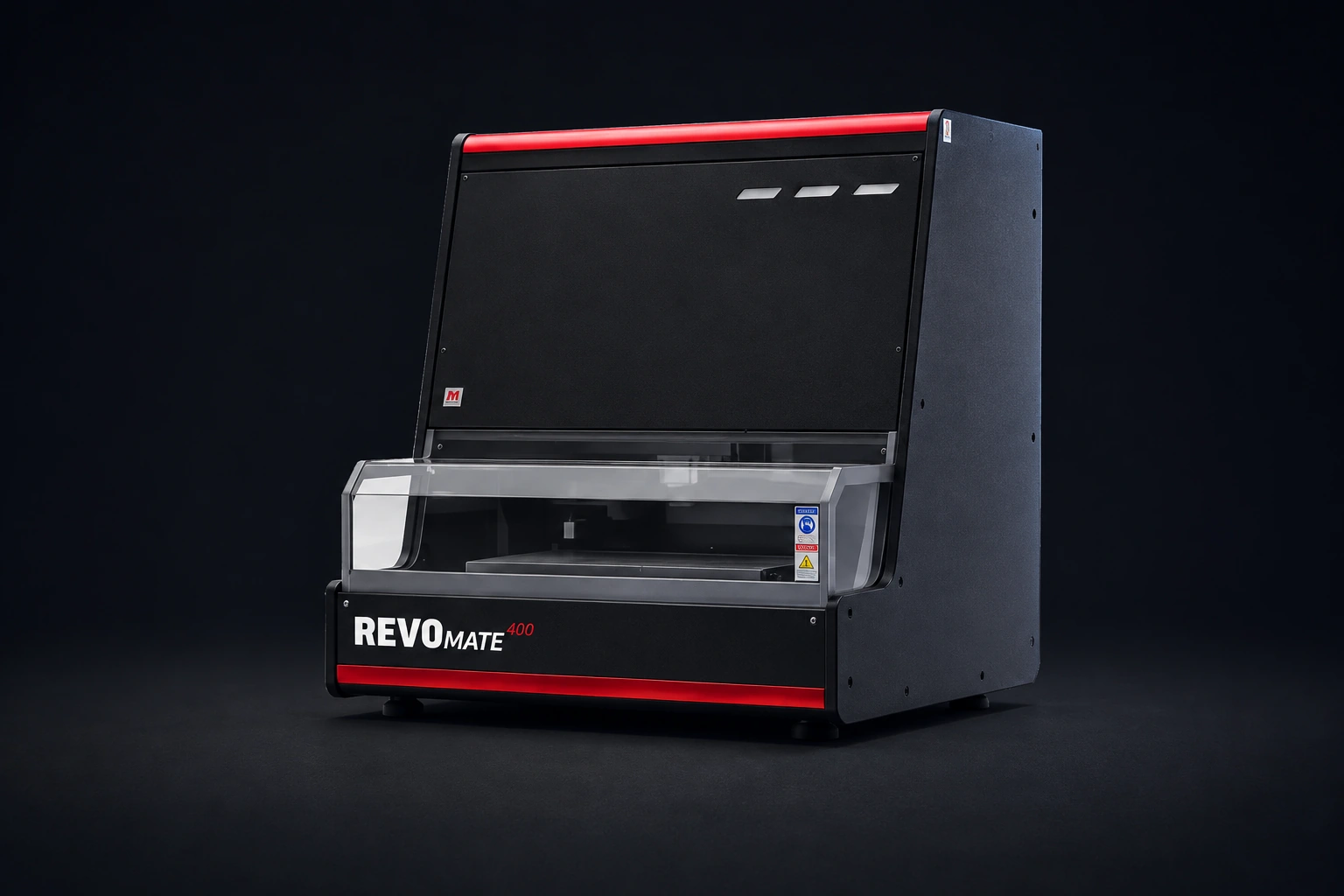

REVO MATE 400 / COMPACT CNC MILLThink
Think
bigger.
One plate. Hundreds of details. Make room for wider surfaces, fine details and your next project with MATE 400.
Discover MATE 400 ↓PRECISION IN EVERY DIMENSIONSpecifications ↗
01 / MATE 400
One surface.
One surface.
Hundreds of details.
A 500 × 400 mm work area, moving table and aluminium cast body. A compact machining space for plates, electronic enclosures and fixtures.
Will it fit my part? ↗- AXIS TRAVEL / MM
- 500 × 400 × 170
- STANDARD SPINDLE
- 40,000 rpm
- EXTERNAL SIZE / MM
- 795 × 960 × 880
02 / WORKHOLDINGFlexible
Flexible
workholding options.

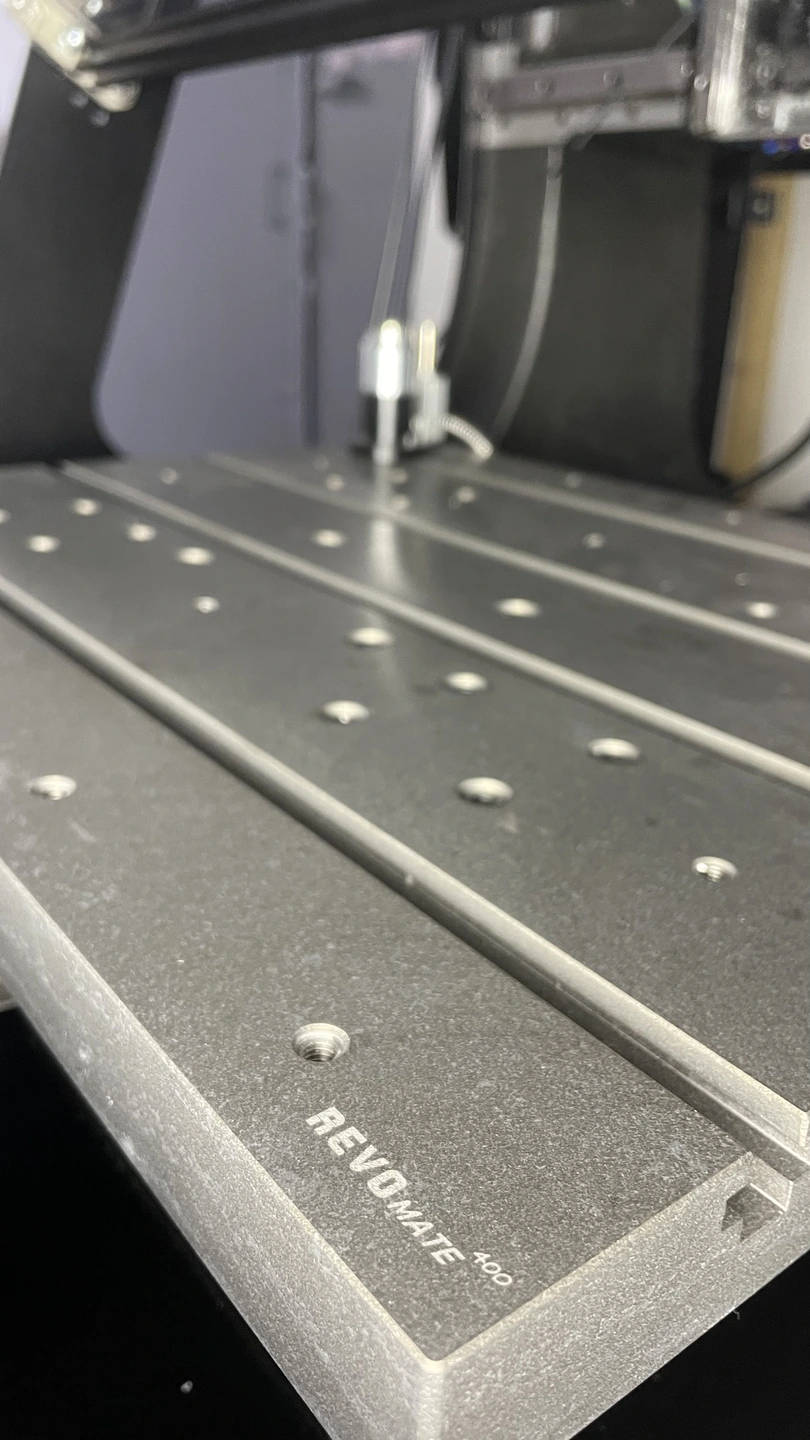

A 30 mm thick, hard-anodised table. T-slots and helicoil holes combine to accommodate vices, fixtures and different workholding arrangements.
- TABLE SURFACE
- 500 × 400 mm
- MAXIMUM TABLE LOAD
- 25 kg
03 / SPINDLE AND AXESSmall tool.
Small tool.
Big difference.

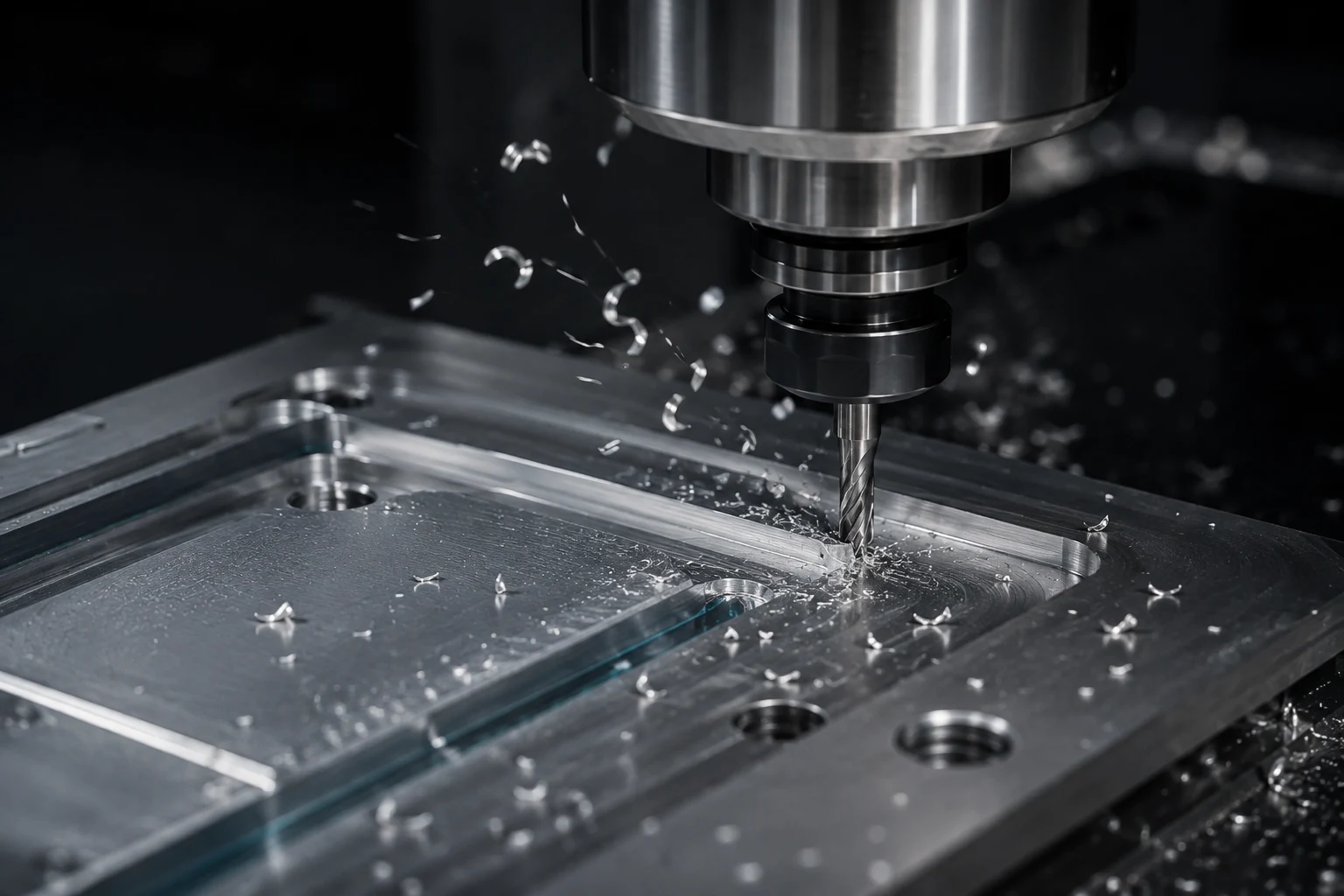

Fine details with small tools and a 40,000 rpm spindle. For aluminium, brass, copper and engineering plastics.
40.000RPM / 1,5 kW / ER16
0,002 mm
REPEATABILITYBack to the same point. With directly driven servo axes.

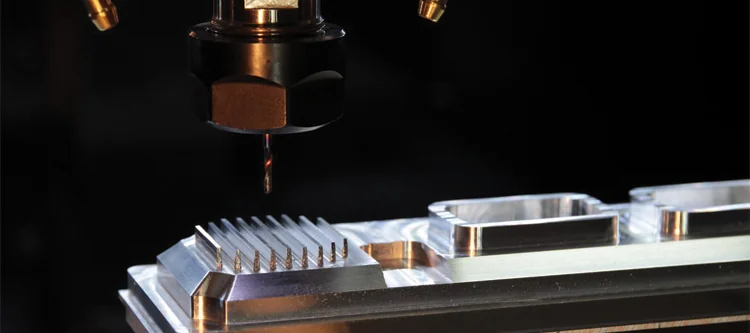

FROM THE WORKSHOP / SURFACE FINISHThe toolpath ends.
The toolpath ends.
The surface speaks.
Fine-detail aluminium machining with a 40,000 rpm / 1.5 kW spindle.
40,000 RPM1.5 KWMACHINING RESULT
Is MATE 200
Is MATE 400 right for you?
Material, part, task and setting. Four answers bring your choice into focus.
500 × 400 × 170
When the part fits this work envelope and the total load on the table stays within 25 kg.
A wider surface
Plate parts, electronic enclosures, fixtures, prototypes and small-batch production.
230 V single phase
An office, laboratory, R&D space, workshop or beside the production line.
BEST SUITED TO
MATE 400 for plates, electronic enclosures and fixtures.
CAST ALUMINUM bodySERVO axes15 INCH integrated control2 YEARS warranty
MATE 400 / ENGINEERINGWork envelope and
Work envelope and
machine dimensions.
Start with the space your part needs. Then see how the machine fits your workshop. Explore both views.
SPACE FOR YOUR PART
500 × 400 × 170MM / X · Y · Z
The travel available to the tool. Consider table size and load capacity together with your fixture.
- Table size
- 500 × 400 mm
- Maximum table load
- 25 kg
ITS PLACE IN YOUR WORKSHOP
795 × 960MM / WIDTH · DEPTH
This is the machine’s exterior boundary. Allow separately for opening panels, operator access and servicing.
- Height
- 880 mm
- Machine weight
- 160 kg
STANDARD SPINDLE40,000RPM
ER16 · Manual tool change
Spindle and axis specifications.
- Spindle power
- 1,5 kW
- Maximum torque
- 0,35 Nm
0.002 mm / REPEATABILITY
Direct-drive servo axes. Cast-aluminium structure.
All technical specificationsDATA SHEET +
01 / MOTION & TABLE
- Travel X / Y / Z
- 500 × 400 × 170 mm
- Table size / maximum load
- 500 × 400 mm / 25 kg
- Spindle-to-table distance
- 40–210 mm
- Positioning
- 0.02 mm / 300 mm
- Repeatability
- 0.002 mm
- Feed rate X / Y / Z
- 6 / 6 / 2 m/min
02 / SPINDLE & CONTROL
- Spindle
- 40,000 rpm / 1.5 kW / 0.35 Nm
- Tool holder
- ER16 · manual
- Maximum tool shank / length
- 10 / 75 mm
- Axis motors
- Servo motor
- Controller
- Masso Touch · 15 inch
03 / INSTALLATION & STRUCTURE
- Supply voltage / full load
- 230 V AC / 2.4 kW
- Body
- Cast aluminum
- Chip capacity
- 8 liters
- External dimensions W / D / H
- 795 × 960 × 880 mm
- Weight / warranty
- 160 kg / 2 years
FOR YOUR WORK
Available accessories
- 2.2 kW / 50,000 rpm ER16 spindle
- Ø100 mm 4th axis
- Vacuum table
- 3D workpiece probe
- 100 mm vise
Let’s discuss
your part.↗
Tell us about your material, part and goal. Let’s assess how MATE 400 fits your work.
Discuss your project ↗
