Reveal
the possibility
within.
From a part to the engineering that makes it possible.
Every surface.
A new possibility.

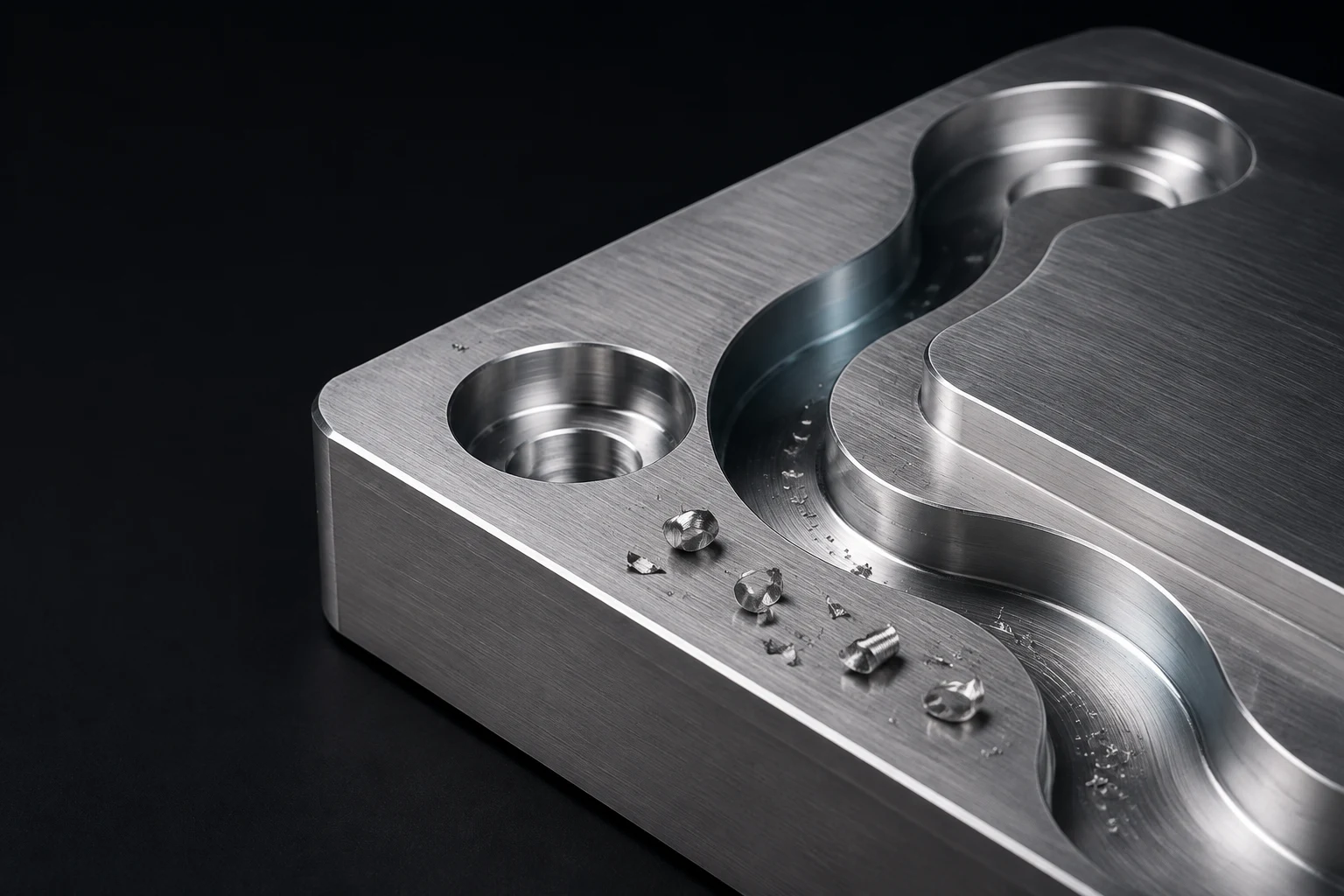

Raw aluminum.
A toolpath.
And an idea taking shape.
Fine details.
High speed.
Small-diameter tools.
High speed. Fine detail.
Big thinking.
A compact
footprint.
Enclosed cabinet. Cast-iron structure.
Industrial character.
Every part.
The same precision.

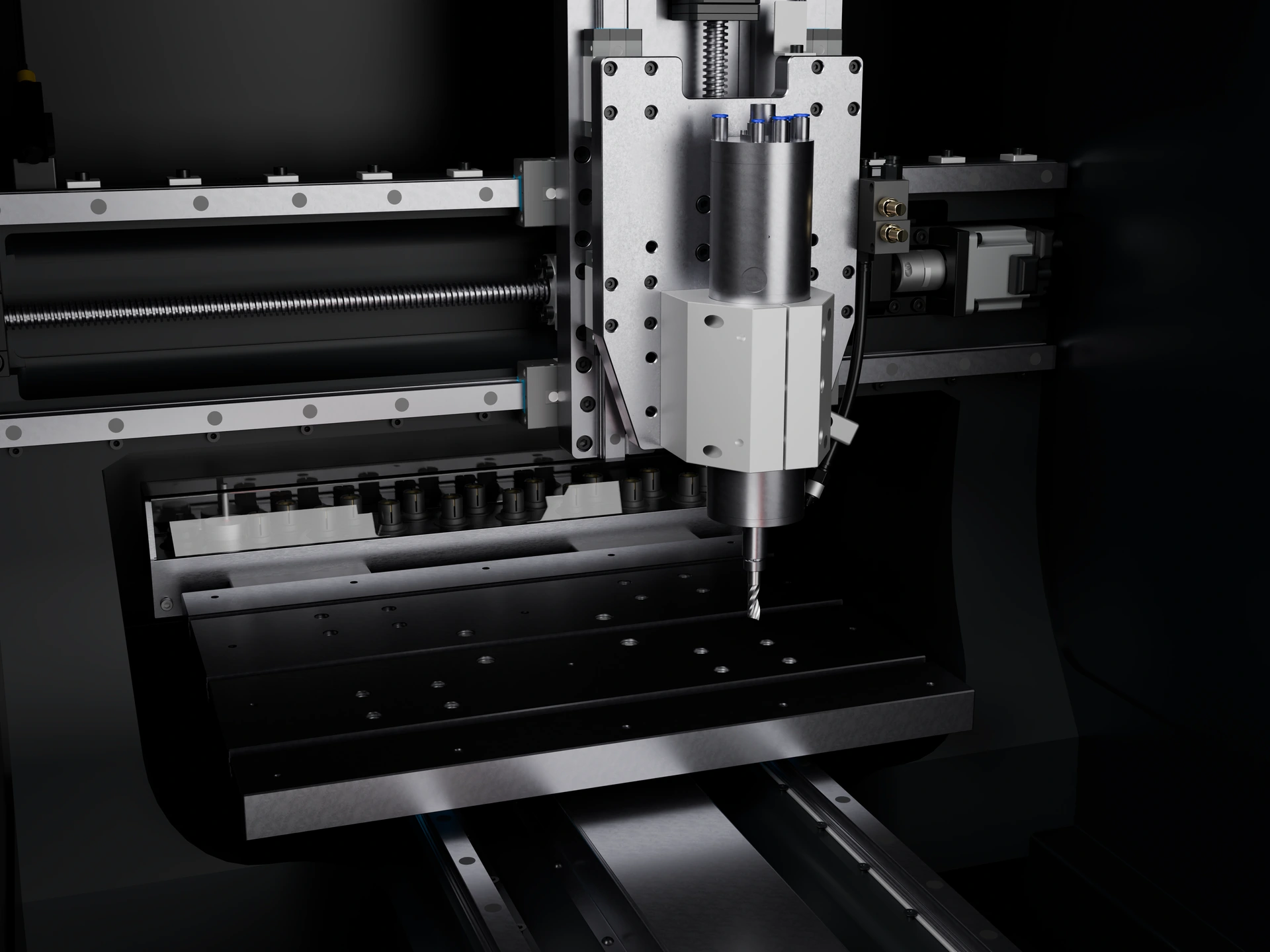

Structure, motion system, spindle.
Every part, for the same precision.
Production.
On your
scale.

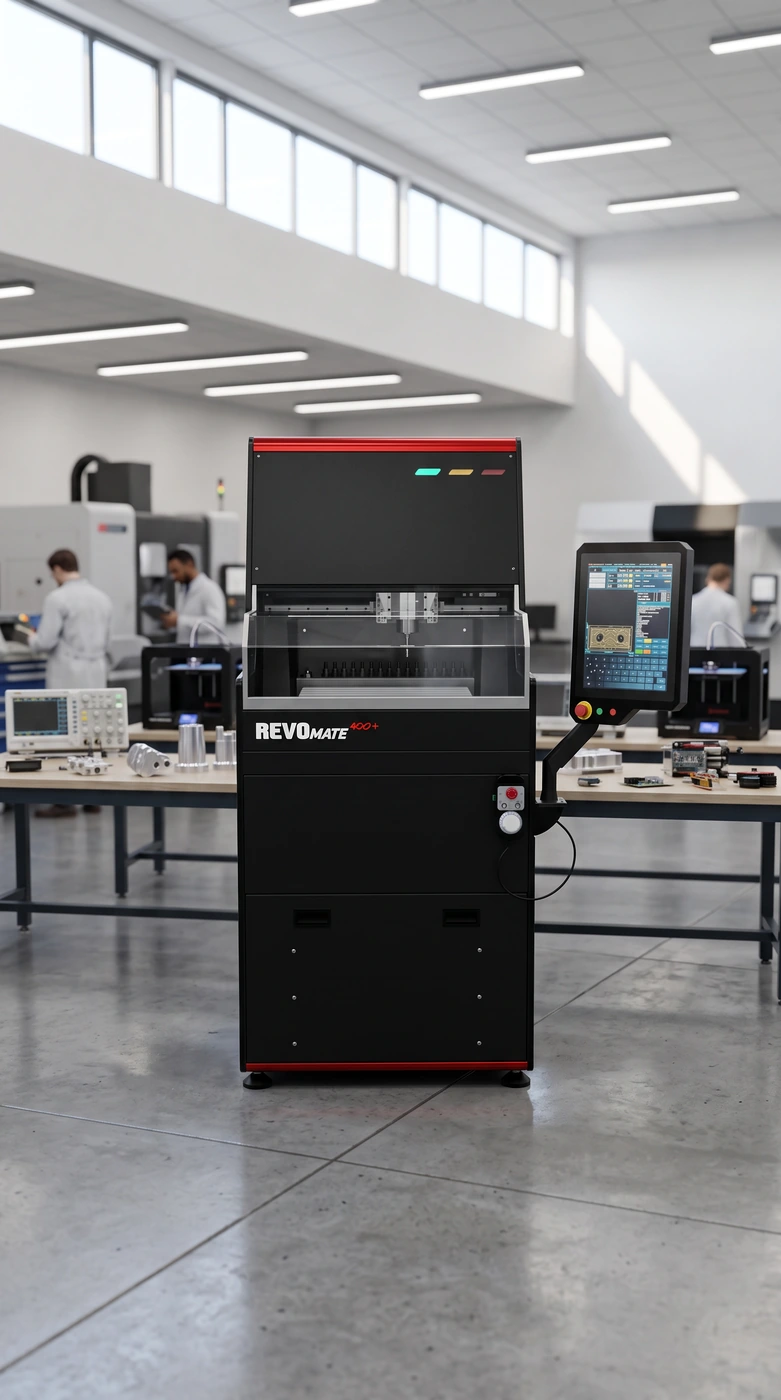

In your workshop. In your R&D space.
Where production starts for you.
IN ONE MACHINE.
Ideas change.
Precision remains.
Repeatability
Machine weight · cast-iron structure
Automatic tool changer · standard
A closer look.
A wider perspective.

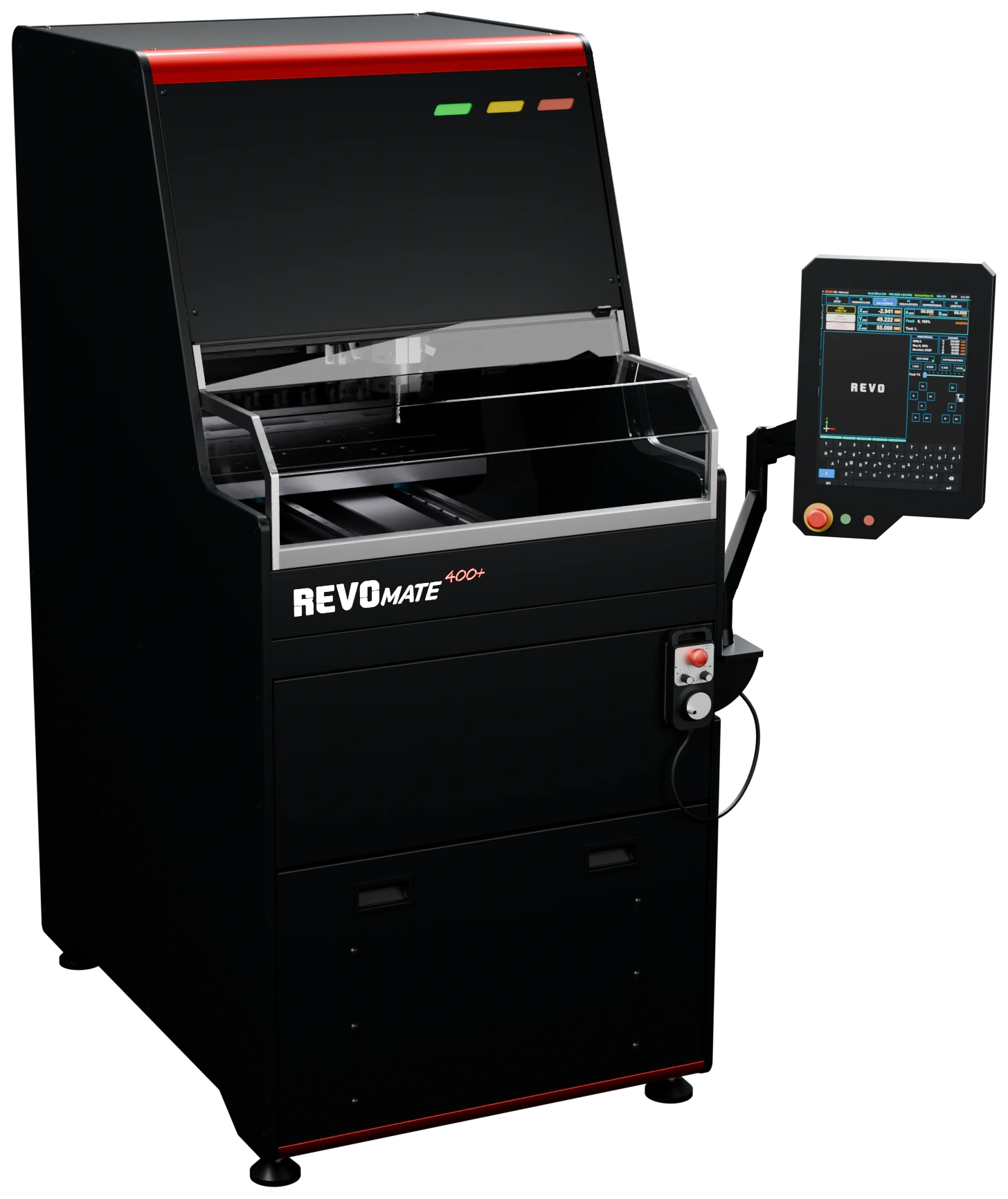

From the spindle to the workspace. The details and setting of MATE 400 Plus.
Follow
your curiosity.
Drag. Rotate. Open.
Explore the machine from your own angle.
One machine.
Two characters.
HSK for power and feed rates.
DTC for the highest speed.
3 kW power. 1.5 Nm torque. HSK-E25 ER16.
- Spindle power
- 3 kW
- Maximum torque
- 1.5 Nm
- Feed rate X / Y / Z
- 12 / 12 / 4 m/min
- Tool holder
- HSK-E25 ER16
- Tool shank diameter / length
- 10 / 75 mm
- Control panel
- HSC · 15.6 inch
- Power consumption at full load
- 3.9 kW
All specifications ＋
- Travel X / Y / Z
- 500 × 400 × 170 mm
- Table size / load
- 500 × 400 mm / 50 kg
- Spindle-to-table distance
- 40 – 210 mm
- Positioning
- 0.02 mm / 300 mm
- Repeatability
- 0.002 mm
- Axis motors
- 200 W servo
- Supply voltage
- 230 V AC · 50 Hz
- Structure / weight
- Cast iron / 700 kg
- Chip tray
- 40 l
- External dimensions W / D / H
- 795 × 1140 × 1720 mm
- Warranty
- 2 years
For aluminum, brass, copper, engineering plastics and composites. Not intended for steel machining. Delivery access, floor capacity and electrical installation are assessed before setup.
Let’s talk
about your part.
Tell us about your material, part and goal.
Let’s choose the right production solution together.
