Spindle speed for small tools
Front panel lettering, keypad detail and connector holes all call for small diameter cutters, and those tools only work efficiently at high speed. Depending on the model the spindle runs between 40,000 and 60,000 rpm.
APPLICATIONS / IT AND ELECTRONICS
IT and Electronics
Product-specific enclosures, front panels and interface parts.
01 / A CLOSER LOOK AT YOUR WORK
Every product has its own mechanics

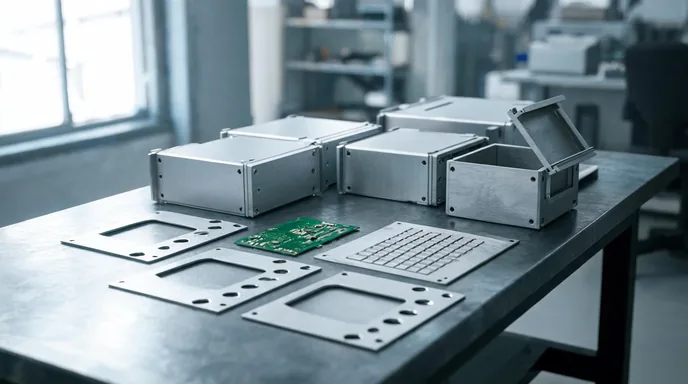

In electronics and IT equipment, enclosures, front panels, connectors and the mechanical parts of user interfaces are usually designed for one specific product. REVO MATE can be used to machine RF enclosures, electronic device housings, display panels, keypads, connector plates and similar parts from aluminium and engineering plastics.
In product development and small-batch production in particular, it shortens the step from design to finished part, so different sizes and designs can be prepared on the same production setup.
Which parts are machined
- RF shielding enclosures
- Electronic device housings
- Display panels and front panels
- Keypads and user interface parts
- Connector plates and fasteners
0.002 mm repeatability
Covers, panels and connector holes have to fit together. On all three models positioning is 0.02 mm over 300 mm and repeatability 0.002 mm.
Thin parts on the vacuum table
The 400x300x38 mm vacuum table clamps thin panels and plates in one go. The same table keeps a PCB level with the bed when machining circuit boards.
THE MATE FAMILYLet’s choose the right model
Compare modelsLet’s choose the right model
for your work.
01 / MATECNC
MATE 200
Close to the idea.
Fixed table and a cabinet that opens from both sides. A compact platform for prototypes and small parts.
- Travel / mm
- 400 × 200 × 170
- Spindle / rpm
- 40,000
02 / MATECNC
MATE 400
Think wider.
A 500 × 400 mm work envelope. For plates, fixtures and larger parts.
- Travel / mm
- 500 × 400 × 170
- Spindle / rpm
- 40,000
03 / MATEATC
MATE 400 Plus
The next step.
Cast-iron structure, automatic tool changing. With HSK and DTC spindle options.
- Travel / mm
- 500 × 400 × 170
- Spindle / rpm
- 60,000¹
